Szczegóły Produktu:
|
| Max. Maks. charge voltage napięcie ładowania: | 4.2V | Temperatura ładowania: | -20 ℃ ~ + 60 ℃ |
|---|---|---|---|
| Małe zamówienie: | Do przyjęcia | OEM: | Witamy |
| High Light: | Bateria litowo-polimerowa 200 mah,bateria litowo-polimerowa LP301215,mała bateria lipo 3 |
||
8 mAh ~ 200 mAh 3,7 V Bateria litowo-polimerowa Pl301215 20 mAh Lipo 3,7 V Mała bateria LP301215
Grubość baterii litowo-polimerowej 3,7 V 3,0 mm-3,9 mm
Akumulator LiPo 3,7 V LP351121 40 mAh
Akumulator Lipo 20MAh 3,7 VLP301215
Ogniwo litowo-polimerowe LP282018 3,7 V 75 mAh 0,28 Wh
Lista małych akumulatorów li-po:
| Model | Pojemność (mah) | Wymiar (mm) | ||
| T±0,1 | W±0,5 | L±0,5 | ||
| 1254 | 60 | 5.4 | 12 | |
| 1040 | 35 | 4.2 | 10 | |
| 1038 | 30 | 3,8 | 10 | |
| 301030 | 70 | 3,0 | 10,0 | 30,5 |
| 301525 | 80 | 3,0 | 15,0 | 25,5 |
| 302020 | 90 | 3,0 | 20,0 | 20,5 |
| 302025 | 110 | 3,0 | 20,0 | 25,5 |
| 302030 | 120 | 3,0 | 20,0 | 30,5 |
| 303048 | 400 | 3,0 | 30,0 | 48,5 |
| 350926 | 60 | 3,0 | 9,0 | 26,5 |
| 380926 | 70 | 3,8 | 9,0 | 26,5 |
| 400808 | 18 | 4.0 | 8.1 | 8,2 |
| 400820 | 40 | 4.0 | 8,3 | 20,5 |
| 400835 | 100 | 4.0 | 8,3 | 35,5 |
| 400838 | 110 | 4.0 | 8,3 | 38,5 |
| 400909 | 25 | 4.0 | 9,1 | 9,2 |
| 400912 | 30 | 4.0 | 9,0 | 12,5 |
| 400930 | 80 | 4.0 | 9,0 | 30,5 |
| 401010 | 25 | 4.0 | 10,0 | 10,5 |
| 401012 | 35 | 4.0 | 10,0 | 12,5 |
| 401015 | 40 | 4.0 | 10,0 | 15,5 |
| 401020 | 55 | 4.0 | 10,0 | 15,5 |
| 401025 | 70 | 4.0 | 10,0 | 25,5 |
| 401030 | 90 | 4.0 | 10,0 | 30,5 |
| 401035 | 110 | 4.0 | 10,0 | 35,5 |
| 401230 | 110 | 4.0 | 12,0 | 30,5 |
| 401235 | 130 | 4.0 | 12,0 | 35,5 |
| 401730 | 150 | 4.0 | 17,0 | 30,5 |
| 402020 | 110 | 4.0 | 20,0 | 20,5 |
| 402025 | 150 | 4.0 | 20,0 | 25,5 |
| 402030 | 200 | 4.0 | 20,0 | 30,5 |
| 402035 | 230 | 4.0 | 20,0 | 35,5 |
| 402050 | 400 | 4.0 | 20,0 | 50,5 |
| 403040 | 400 | 4.0 | 30,0 | 40,5 |
| 403450 | 680 | 4.0 | 24,0 | 50,5 |
| 450833 | 110 | 4,5 | 8,3 | 33,0 |
| 400835 | 110 | 4.0 | 8,3 | 35,0 |
| 450845 | 165 | 4,5 | 8,3 | 45,0 |
| 450909 | 30 | 4,5 | 9,1 | 9,2 |
| 450912 | 35 | 4,5 | 9,0 | 12,5 |
| 500830 | 100 | 5.0 | 8,3 | 30,5 |
| 500843 | 160 | 5.0 | 8,3 | 43,0 |
| 500930 | 110 | 5.0 | 9,1 | 30,5 |
| 500935 | 130 | 5.0 | 9,1 | 35,5 |
| 500945 | 190 | 5.0 | 9,1 | 45,0 |
| 501012 | 43 | 5.0 | 10,0 | 12,5 |
| 501015 | 50 | 5.0 | 10,0 | 15,5 |
| 501030 | 110 | 5.0 | 10,0 | 30,5 |
| 501035 | 150 | 5.0 | 10,0 | 35,5 |
| 501220 | 85 | 5.0 | 12,0 | 20,5 |
| 501225 | 110 | 5.0 | 12,0 | 25,5 |
| 501230 | 120 | 5.0 | 12,0 | 30,5 |
| 501235 | 150 | 5.0 | 12,0 | 35,5 |
| 501240 | 200 | 5.0 | 12,0 | 40,5 |
| 501245 | 250 | 5.0 | 12,0 | 45,5 |
| 501525 | 150 | 5.0 | 15,0 | 25,5 |
| 501535 | 230 | 5.0 | 15,0 | 35,5 |
| 502020 | 150 | 5.0 | 20,0 | 20,5 |
| 502025 | 200 | 5.0 | 20,0 | 25,5 |
| 502030 | 250 | 5.0 | 20,0 | 30,5 |
| 502035 | 320 | 5.0 | 20,0 | 35,5 |
| 502248 | 500 | 5.0 | 22,0 | 48,5 |
| 502530 | 320 | 5.0 | 25,0 | 30,5 |
| 502535 | 400 | 5.0 | 25,0 | 35,5 |
| 502540 | 550 | 5.0 | 25,0 | 40,5 |
| 503030 | 450 | 5.0 | 30,0 | 30,5 |
| 503035 | 500 | 5.0 | 30,0 | 35,5 |
| 503040 | 600 | 5.0 | 30,0 | 40,5 |
| 503048 | 750 | 5.0 | 30,0 | 48,5 |
| 503759 | 1200 | 5.0 | 37,0 | 59,5 |
| 523450 | 1000 | 5.2 | 34,0 | 50,5 |
| 551012 | 50 | 5,5 | 10,0 | 12,5 |
| 551015 | 55 | 5,5 | 10,0 | 15,5 |
| 551145 | 250 | 5,5 | 11,3 | 45,5 |
| 551240 | 230 | 5,5 | 12,0 | 40,5 |
| 552535 | 450 | 5,5 | 10.1 | 35,5 |
| 581013 | 52 | 5,8 | 10.2 | 13,5 |
| 582728 | 400 | 5,8 | 27,2 | 28,5 |
| 601012 | 55 | 6,0 | 10.2 | 12,5 |
| 601015 | 60 | 6,0 | 10.2 | 15,5 |
| 601040 | 200 | 6,0 | 10.2 | 40,5 |
| 601043 | 250 | 6,0 | 10.2 | 43,0 |
| 601220 | 110 | 6,0 | 12,0 | 20,5 |
| 601230 | 180 | 6,0 | 12,0 | 30,5 |
| 601235 | 200 | 6,0 | 12,0 | 35,5 |
| 601435 | 280 | 6,0 | 14,0 | 35,5 |
| 601730 | 250 | 6,0 | 17,0 | 30,5 |
| 602020 | 180 | 6,0 | 20,0 | 20,5 |
| 602025 | 250 | 6,0 | 20,0 | 25,5 |
| 602030 | 300 | 6,0 | 20,0 | 30,5 |
| 602035 | 400 | 6,0 | 20,0 | 35,5 |
| 602040 | 450 | 6,0 | 20,0 | 40,5 |
| 602045 | 500 | 6,0 | 20,0 | 45,5 |
| 602530 | 400 | 6,0 | 25,0 | 30,5 |
| 602535 | 500 | 6,0 | 25,0 | 35,5 |
| 602540 | 600 | 6,0 | 25,0 | 40,5 |
| 602626 | 400 | 6,0 | 26,0 | 26,5 |
| 603030 | 500 | 6,0 | 30,0 | 30,5 |
| 603035 | 600 | 6,0 | 30,0 | 35,5 |
| 603040 | 750 | 6,0 | 30,0 | 40,5 |
| 603048 | 850 | 6,0 | 30,0 | 48,5 |
| 603450 | 1200 | 6,0 | 34,0 | 50,5 |
| 651730 | 300 | 6,8 | 17,0 | 30,5 |
| 681345 | 400 | 6,8 | 13,0 | 45,5 |
| 701230 | 220 | 7,0 | 12.2 | 30,5 |
| 701250 | 400 | 7,0 | 12.2 | 50,5 |
| 701435 | 320 | 7,0 | 14,0 | 35,5 |
| 702020 | 210 | 7,0 | 20,0 | 20,5 |
| 702025 | 300 | 7,0 | 20,0 | 25,5 |
| 702030 | 380 | 7,0 | 20,0 | 30,5 |
| 702035 | 450 | 7,0 | 20,0 | 35,5 |
| 702040 | 500 | 7,0 | 20,0 | 40,5 |
| 702530 | 500 | 7,0 | 25,0 | 30,5 |
| 702535 | 600 | 7,0 | 25,0 | 35,5 |
| 703040 | 800 | 7,0 | 30,0 | 40,5 |
| 703048 | 1100 | 7,0 | 30,0 | 48,5 |
| 751425 | 240 | 7,5 | 14,0 | 25,5 |
| 751535 | 380 | 7,5 | 15,0 | 35,5 |
| 801230 | 250 | 8,0 | 12,5 | 30,5 |
| 801350 | 500 | 8,0 | 13,0 | 50,5 |
| 802025 | 350 | 8,0 | 20,0 | 25,5 |
| 802030 | 420 | 8,0 | 20,0 | 30,5 |
| 802035 | 500 | 8,0 | 20,0 | 35,5 |
| 802040 | 650 | 8,0 | 20,0 | 40,5 |
| 802050 | 800 | 8,0 | 20,0 | 50,5 |
| 802530 | 600 | 8,0 | 25,0 | 30,5 |
| 802535 | 700 | 8,0 | 25,0 | 35,5 |
| 802540 | 800 | 8,0 | 25,0 | 40,5 |
| 803030 | 750 | 8,0 | 30,0 | 30,5 |
| 803035 | 800 | 8,0 | 30,0 | 35,5 |
| 803040 | 900 | 8,0 | 30,0 | 40,5 |
| 803048 | 1200 | 8,0 | 30,0 | 48,5 |
| 803450 | 1500 | 8,0 | 34,0 | 50,5 |
| 902025 | 400 | 9,0 | 20,0 | 25,5 |
| 902030 | 500 | 9,0 | 20,0 | 30,5 |
| 902035 | 600 | 9,0 | 20,0 | 35,5 |
| 902040 | 700 | 9,0 | 20,0 | 40,5 |
| 902535 | 800 | 9,0 | 25,0 | 35,5 |
| 101550 | 800 | 10,0 | 15,0 | 50,5 |
| 102050 | 1000 | 10,0 | 20,0 | 50,5 |
| 102530 | 800 | 10,0 | 25,0 | 30,5 |
| 102540 | 1100 | 10,0 | 25,0 | 40,5 |
| 103040 | 1200 | 10,0 | 30,0 | 40,5 |
| 103048 | 1650 | 10,0 | 30,0 | 48,5 |
| 103450 | 2000 | 10,0 | 34,0 | 50,5 |
Akumulator litowo-polimerowy Zalety produktu:
1) przyjazny dla środowiska;
2) Wysoka gęstość energii
3) Lekka waga
4) Niskie samorozładowanie
5) Niski opór wewnętrzny
6) Długi cykl życia, ładowany do 500 lub 1000 razy
7) Brak efektu pamięci
8) nie zawiera rtęci, nie ma ognia, nie ma eksplozji, nie ma wycieków;
9) Bardzo dobre i szybkie ładowanie, możliwość naładowania do 90% w ciągu 10 min.
10) Grubość można regulować, a szerokość i wysokość pozostają takie same
Główne zastosowanie:
1) odtwarzacz MP3/MP4, bluetooth, głośniki, samochodowy GPS i wszystkie możliwe produkty elektroniczne;
2) Szeroko stosowane w urządzeniach telekomunikacyjnych, audio i wideo, urządzeniach informacyjnych ... itp.

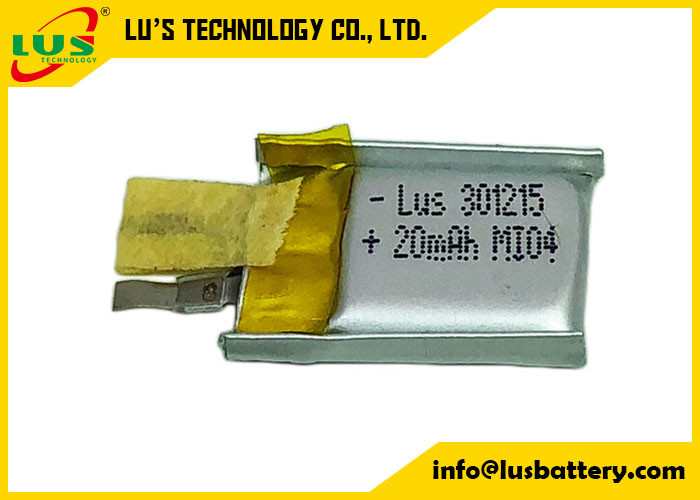

Obraz baterii litowo-polimerowej LP301215:
Dane baterii litowej PL301215:
| Rodzaj | Akumulator |
| Numer części | LP301215 PL301215 |
| Napięcie | 3,7V |
| Pojemność | 20 mah |
| Terminale | Szpilki, zakładki, przewody lub złącze zależą od zastosowania klienta |
| Temperatura pracy | -20 do +60 |
| OEM | Powitanie |
| Małe zamówienie | Do przyjęcia |
| MOQ | Brak prośby, jeśli jest gotowy do wysyłki |
| Zapłata | T/T |
