Miejsce pochodzenia:
Chiny
Nazwa handlowa:
OEM
Orzecznictwo:
UL
Numer modelu:
Bateria 2CR1/3N
Wideo

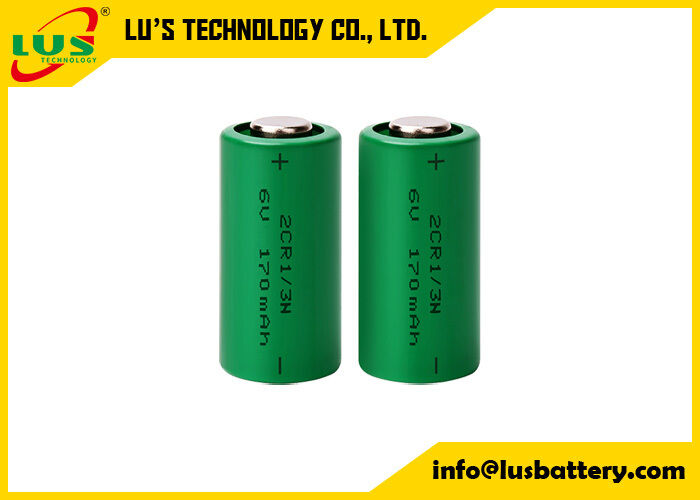

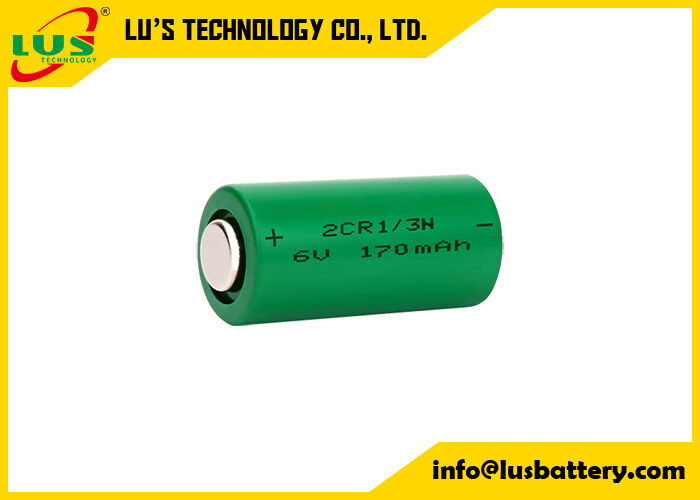

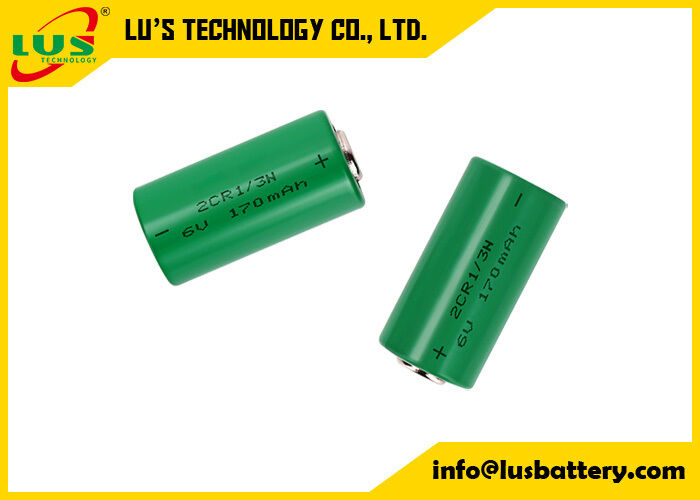

6V lithium battery 2CR1/3N 170mah limno2 button battery pack Cusotmized
2CR1/3N 6V Lithium Manganese Dioxide Battery PX28L 6V battery V28PXL lithium primary battery CR1/3N Lithium Battery 3.0 Volts 160 mAh Lithium Battery 2CR1/3N 6VDC 170mAh Non-Rechargeable battery 2CR13n Cylindrical lithium battery 2CR1/3N limno2 battery V28PXL lithium battery is used in many different devices.
Examples: medical devices, alarm systems, photo equipment and sporting goods.
2CR-1/3N Batteries 6volt Non-Rechargeable battery 2CR1-3N Primary battery 2CR1/3N 6V Lithium cell battery VPX28LB - Batteries CR11108 disposable battery pack CR1/3N lithium battery pack CR-1/3N battery OEM DL1/3N lilthium metal battery 2L76 battery 2LR44 3V Lithium Battery PX28L 6V battery 2CR1/3N li/mno2 battery 28L High Power Lithium battery is equivalent to 6V 4LR44 battery 2CR11108 battery L544 battery PX28L battery V28PX battery 1406LC battery 1414A Lithium 6V battery 2CR1/3N battery BATLI03 battery factory
| No. | Items | Characteristics |
| 1 | Nominal Capacity* | 170 mAh |
| 2 |
Discharge capacity (continuously discharge under 10mA,till 2.0V end voltage) |
170mAh@3mA |
| 3 | Nominal Voltage | 6Volt |
| 4 | Operating Temperature range | -20～+60℃ |
| 5 | Max. Pulse Current | 140 mA |
| 6 | Max. Continuous Discharge Current | 600 mA |
| 7 | Storage life | About 10 years |
| 8 | Weight for Reference | About 6.4g |
2CR1/3N batteries :
Key features:
High and stable operating voltage
Superior drain capability
Low self-discharge rate (less than 3% after 1year of storage at +20 )
Optional stainless steel container for low magnetic and nickle plated steelcontainer for more
safe design
Hermetic glass-to-metal sealing
Notch technology for safety vent is recommended
PTC for finished product is optional
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte
8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.
Application
| Mode | Voltage (V) | Capacity (mAh) | Discharge Current(mA) | End Voltage(V) | Diameter(mm) | Height (mm) | Weight (g) | Testing Temp.(℃) |
| CR14250 | 3 | 650 | 10 | 2 | 14.5 | 25 | 10 | 23±3 |
| CR14505 | 3 | 1500 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3 | 1500 | 10 | 2 | 17 | 33.5 | 17 | 23±3 |
| CR17450 | 3 | 2000 | 10 | 2 | 17 | 50.5 | 23 | 23±3 |
| CR17505 | 3 | 2500 | 10 | 2 | 17 | 50.5 | 25 | 23±3 |
| CR17345(CR123A) | 3 | 1500 | 10 | 2 | 17 | 34.5 | 17 | 23±3 |

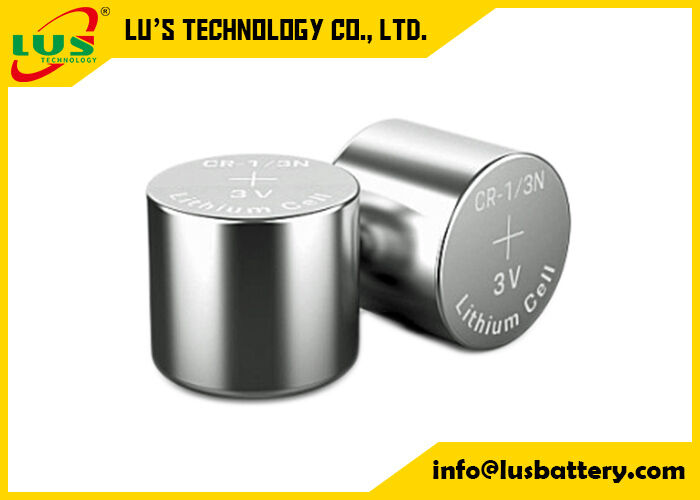

| CR11108(CR1/3N) | 3 | 160 | 2 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270(CR2) | 3 | 850 | 10 | 2 | 15.6 | 27 | 11 | 23±3 |
| CR-P2 | 6 | 1500 | 10 | 4 | 35x19.5x36 | 38 | 23±3 | |
| 2CR5 | 6 | 1500 | 10 | 4 | 34x45x17 | 38 | 23±3 | |
| CR-V3 | 3 | 3000 | 20 | 2 | 29x14.5x53 | 38 | 23±3 | |
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
