Miejsce pochodzenia:
Chiny
Nazwa handlowa:
OEM
Orzecznictwo:
IEC, CE, SGS, ISO, Rohs
Numer modelu:
Bateria AAA 1,5 V 1200 mAh
Wideo
Wideo

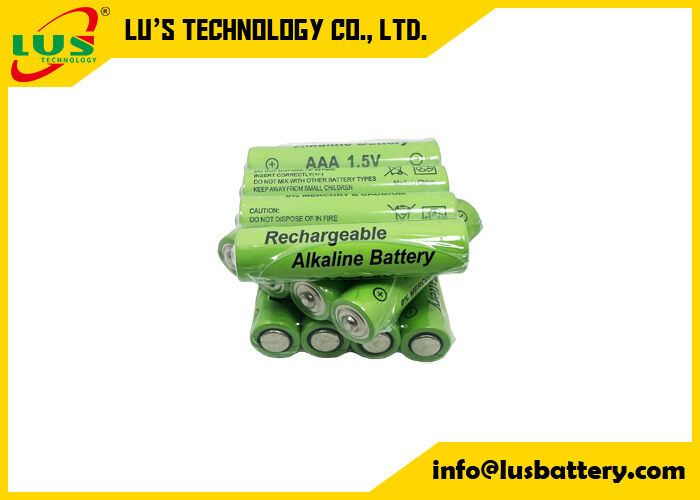

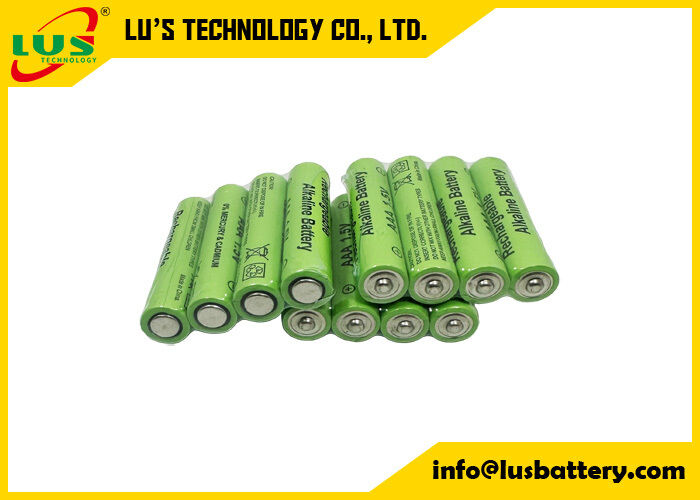

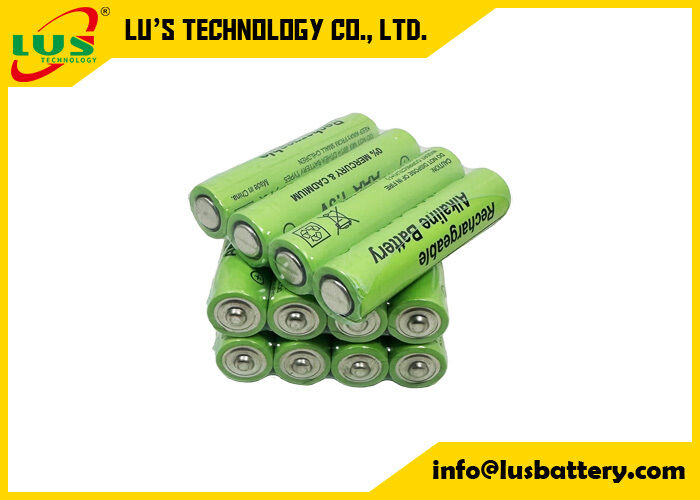

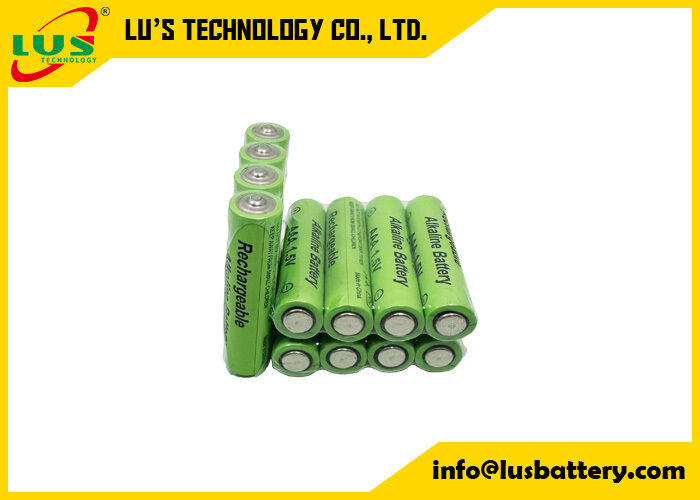

ALKALINE dry cell battery size AAA battery LR3 1.5 V 1200 mAh battery customized factory
Alkali-manganese battery1.5 V battery AAA size battery LR03 dry cell battery 24AU primary battery AAA Zinc Batteries 1.5V AAA battery LR3 1.5V Zinc Batteries AAA 1.5V Heavy Duty Battery AAA 1.5V LR3 battery MRBAT141 1.5V LR3 Alkaline Battery 1100mAh non-rechargeable battery 1.5V 1200mah battery toys battery electronics battery LR03 AAA battery Alkali-manganese battery 1200 mAh 1.5 V Alternative battery LR03 AAA dry cell alkaline battery LR3 battery AM4M8A battery AM4 Bateria alkaliczna battery AAA LR3 1.5 V battery
primary 1.5V battery 1.5v AAA battery LR3 battery 1.5 vol bulk battery data sheet:
| Battery series | Alkaline battery |
| Battery model | LR03 |
| Battery size | AAA |
| Battery voltage | 1.5 volt |
| Diameter | 9.5-10.5 mm |
| Height | 43.3-44.5 mm |
| Discharge time | 100 minute to 150 minute |
| Jacket | Foil label |
1.5volt LR03 alkaline battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR03/ AAA/ 1.5v | 4B/card | 30 cards | 240 cards | 395*297*214mm | 13.6 kgs | 4S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs |
| 2S/shrink | 40 pcs | 1200 pcs | 240*230*161mm | 14.3 kgs | ||||||
Disposable Alkaline battery 1.5 volt list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
1.5v Rechargeable Alkaline battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
Wyślij do nas zapytanie
