Miejsce pochodzenia:
Guangdong, Chiny
Nazwa handlowa:
OEM
Numer modelu:
Cienka bateria CP402535 3V
Wideo
Wideo
Wideo
Wideo
3.0volt battery 780mah CP series battery CP402535 limno2 battery custom lithium battery factory
Li-MnO2 CP402535 Battery CP402535 CP Ultra Thin Battery CP402535 Li Mno2 Battery 3v 780mah Ultra Thin Lithium Pouch Cell battery 3V Lithium Manganese Dioxide battery 780mah CP402535 3V Slim Lipo Battery CP402535 Lithium Manganese Dioxide battery 3V 780mah Lithium ultra Thin Battery CP402535 3v 0.78Ah lithium battery CP402535 limno2 pouch battery used for Electronic Doorbell Battery electronic Tags Battery Soft pouch cell battery widely for PCB mounting
Li Mno2 Battery 3v 780mah Ultra Thin Lithium Pouch Cell battery CP402535 lithium pouch cell battery CP402535 li mno2 battery 3v 780mah CP402535 ultra thin cell battery 3V doorbell Ultrathin Primary Lithium Batteries 3.0V Soft-package Lithium-manganese dioxide battery CP402535 limno2 Batteries 3V 780mah thin-film lithium batteries CP402535 ultra thin cell battery
CP402535 flat lithium battery 3V sot limno2 battery 780mah thin battery data sheet:
| Name | lithium pouch limno2 battery |
| Material | soft lithium li-mno2 battery |
| Model | CP402535 |
| Voltage | 3.0V |
| Capacity | 780mah |
| Dimension | Max.4.0×25.5×35.5mm |
| Temperature | -40 to +70 |
| Weight | 7.0g |
| Max continuous discharge current | 400mA |
| Max pluse discharge current | 800mA |
| Terminals | Customized |
| Samples | Available |
| Shipping | AIR/SEA/EXPRESS |
| OEM and ODM | Welcome |

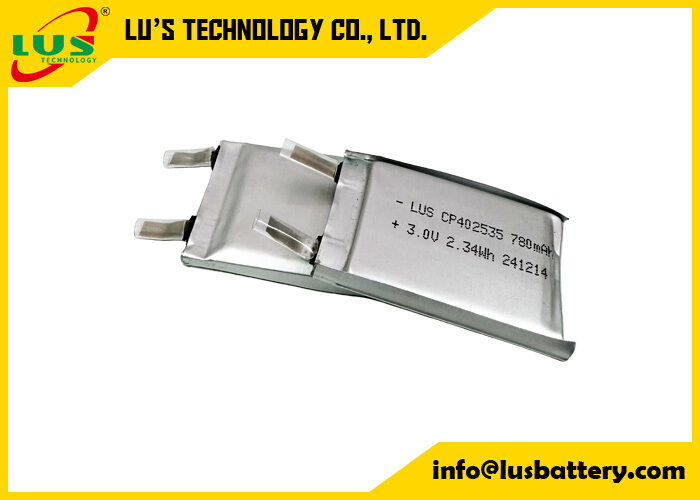

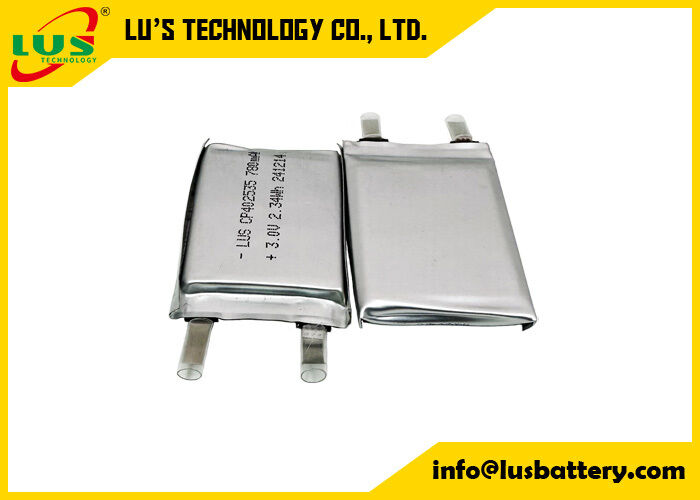

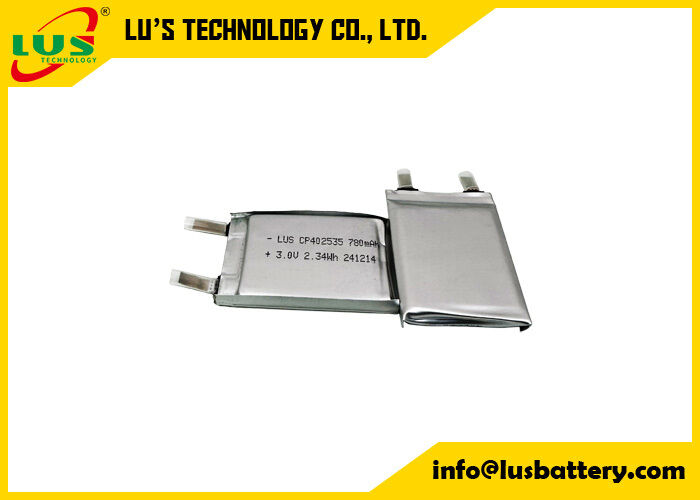

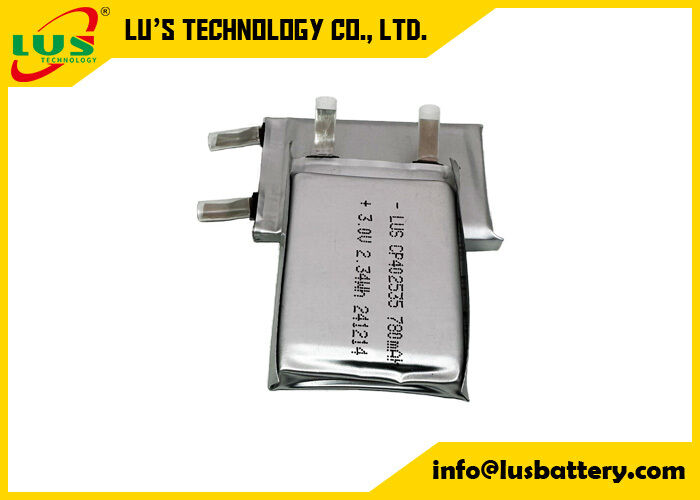

Lithium primary battery 3Volt battery CP402535 flat lithium CP battery 780mah soft lithium primary battery picture
LUS battery welcome any size pouch cell battery custom
Capacity from 4mah up to 16000mah lithium battery
CP9V CP054535 CP056045 CP063945 CP064040 CP064090 CP072922 CP074545 CP084015 CP084248 CP087022 CP089022 CP1002045 CP1002440 CP1003450 CP1003550 CP10037104 CP1003742 CP10044116 CP1004550 CP1005050 CP1005060 CP1007060 CP105050 CP1102425 CP1105065 CP114752 CP1202425 CP145550 CP153030 CP155050 CP155070 CP224147 CP232740 CP233347 CP253054 CP253428 CP254045 CP281025 CP301020 CP301725 CP302525 CP302575 CP303054 CP303742 CP305050 CP343550 CP352140 CP352440 CP382140 CP383047 CP401725 CP402522 CP403054 CP403345 CP405050 CP405060 CP422130 CP451830 CP472130 CP501725 CP501830 CP502025 CP502440 CP502525 CP502530 CP502537 CP503742 CP505050 CP551725 CP551830 CP553550 CP601733 CP603446 CP603448 CP603550 CP603742 CP605050 CP651848 CP652440 CP653742 CP681916 CP702025 CP702440 CP702537 CP703047 CP7037104 CP7039109 CP704216 CP705050 CP752425 CP754548 CP7839109 CP802025 CP802240 CP8026110 CP8044116 CP804560 CP853078 CP902440 CP902525 CP9026110 CP9032100 CP903450 CP905050 CP952440 CP952434 CP953083 CP9539109 CP955060
| Item | Model | Dimensions (T*W*L)mm |
Max continuns current (mA) | Max Plus current (mA) | Weight (g) |
Capacity (mAh ) |
| 1 | CP9V | 17.5*26.5*48.5 | 300 | 600 | 37 | 1200 |
| 2 | CP054535 | 0.65*45.5*35 | 20 | 50 | 1.35 | 110 |
| 3 | CP056045 | 0.65*60*45 | 40 | 80 | 2.5 | 220 |
| 4 | CP063945 | 0.6*39*45.5 | 40 | 80 | 1.7 | 170 |
| 5 | CP064040 | 0.65*40*40 | 20 | 50 | 1.3 | 110 |
| 6 | CP064090 | 0.65*40.5*90 | 80 | 150 | 3.5 | 320 |
| 7 | CP072922 | 0.8*29*23 | 0.25 | 10 | 0.6 | 28 |
| 8 | CP074545 | 0.7*45*45 | 40 | 80 | 2.05 | 200 |
| 9 | CP084015 | 0.8*40*15 | 5 | 10 | 0.55 | 40 |
| 10 | CP084248 | 0.95*42*48.5 | 40 | 80 | 2.4 | 200 |
| 11 | CP087022 | 0.8*70*22 | 20 | 40 | 1.6 | 150 |
| 12 | CP089022 | 0.8*90*22 | 40 | 80 | 1.7 | 230 |
| 13 | CP1002045 | 9.8*20.5*45 | 800 | 1000 | 13.8 | 2000 |
| 14 | CP1002440 | 9.8*24*41.5 | 800 | 1200 | 15.2 | 2400 |
| 15 | CP1003450 | 10.0*34*50 | 1000 | 2000 | 27.8 | 4500 |
| 16 | CP1003550 | 10.0*35*50 | 1500 | 2500 | 29.2 | 5000 |
| 17 | CP10037104 | 10.2*36*104 | 3000 | 5000 | 70.2 | 12000 |
| 18 | CP10037104K | 10.5*36.5*106.5 | 3000 | 4500 | 68.5 | 12000 |
| 19 | CP1003742 | 10.0*38*42 | 1500 | 2000 | 25.18 | 4000 |
| 20 | CP10044116 | 9.8*44.5*116 | 3000 | 5000 | 90 | 16000 |
| 21 | CP1004550 | 10*45.5*49.5 | 2000 | 3000 | 39.5 | 6500 |
| 22 | CP1004560 | 10.0*45*61 | 3000 | 4500 | 14.5 | 8000 |
| 23 | CP1005050 | 10.1*50*50 | 2000 | 3000 | 44.5 | 7500 |
| 24 | CP1005060 | 10.2*50*60 | 3000 | 5000 | 55.5 | 10000 |
| 25 | CP1007060-Z | 9.8*68*61 | 2000 | 3000 | 69.5 | 12000 |
| 26 | CP105050 | 1.05*50*51 | 80 | 120 | 3.45 | 320 |
| 27 | CP1102425 | 10.8*24*26 | 600 | 700 | 8.76 | 1400 |
| 28 | CP1105065 | 11.0*50*61 | 3000 | 5000 | 58.5 | 10000 |
| 29 | CP114752 | 1.15*47*51.5 | 150 | 200 | 3.6 | 400 |
| 30 | CP114752 | 1.10*47.5*52 | 100 | 200 | 4.1 | 540 |
| 31 | CP1202425 | 11.8*24*26 | 600 | 800 | 9.5 | 1450 |
| 32 | CP145550 | 1.45*55.5*50 | 100 | 200 | 6.2 | 600 |
| 33 | CP153030 | 1.7*30*31.5 | 20 | 40 | 1.68 | 150 |
| 34 | CP155050 | 1.65*50*50.5 | 200 | 250 | 4.8 | 500 |
| 35 | CP155050 | 1.5*50*50 | 200 | 300 | 5.7 | 710 |
| 36 | CP155070 | 1.5*50.5*70 | 300 | 500 | 8 | 1080 |
| 37 | CP224147 | 2.4*44*49 | 200 | 400 | 7.6 | 850 |
| 38 | CP232740 | 2.3*27*41.5 | 100 | 200 | 3.5 | 400 |
| 39 | CP233347 | 2.2*33*48 | 200 | 300 | 5 | 600 |
| 40 | CP253054 | 2.5*33*54 | 200 | 400 | 7.2 | 800 |
| 41 | CP253428 | 2.5*34*28 | 100 | 150 | 2.9 | 350 |
| 42 | CP254045 | 2.4*40*45 | 200 | 400 | 6.7 | 800 |
| 43 | CP281025 | 2.7*10*25 | 10 | 20 | 0.9 | 85 |
| 44 | CP301020 | 3.0*10*21 | 20 | 40 | 0.83 | 95 |
| 45 | CP301725 | 3.05*17.5*24.5 | 100 | 150 | 1.84 | 190 |
| 46 | CP302525 | 3.2*25*25 | 100 | 150 | 2.9 | 370 |
| 47 | CP302575 | 2.8*25*75 | 300 | 500 | 9.03 | 1400 |
| 48 | CP303054 | 3.0*30*54 | 300 | 500 | 8.4 | 1000 |
| 49 | CP303742 | 3.2*38*41 | 300 | 600 | 7.65 | 1100 |
| 50 | CP305050 | 3.3*51*51 | 800 | 1000 | 13.3 | 1800 |
| 51 | CP343550 | 3.3*36*50 | 300 | 600 | 9.5 | 1200 |
| 52 | CP352140 | 3.4*21*40 | 200 | 300 | 4.2 | 520 |
| 53 | CP352440 | 3.5*24*41 | 300 | 400 | 5.6 | 650 |
| 54 | CP382140 | 3.8*21*40 | 200 | 300 | 4.7 | 650 |
| 55 | CP383047 | 3.8*30*47.5 | 300 | 500 | 9 | 1350 |
| 56 | CP401725 | 4.1*17*25 | 100 | 150 | 2.4 | 300 |
| 57 | CP402522 | 4.1*24*22 | 150 | 200 | 3.2 | 400 |
| 58 | CP403054 | 3.9*30*54.5 | 600 | 800 | 10.3 | 1500 |
| 59 | CP403345 | 3.9*33*46 | 300 | 600 | 9.8 | 1300 |
| 60 | CP405050 | 4.2*51*51 | 1000 | 1200 | 18.3 | 2500 |
| 61 | CP405060 | 4.0*50.5*61 | 1500 | 2000 | 21.1 | 3000 |
| 62 | CP422130 | 4.1*20.5*30.5 | 150 | 250 | 8.2 | 500 |
| 63 | CP451830 | 4.6*18*31 | 200 | 250 | 3.7 | 500 |
| 64 | CP472130 | 4.7*21*30.5 | 200 | 275 | 4.4 | 550 |
| 65 | CP501725 | 5*16.5*25 | 150 | 200 | 3 | 400 |
| 66 | CP501830 | 5.1*18*31 | 200 | 300 | 4.01 | 500 |
| 67 | CP502025 | 5.0*19*25 | 100 | 200 | 3.6 | 500 |
| 68 | CP502440 | 5.2*24.5*41.5 | 300 | 600 | 8.6 | 1200 |
| 69 | CP502525 | 5.2*25*25 | 200 | 400 | 4.5 | 600 |
| 70 | CP502530 | 5.0*24*30 | 200 | 300 | 5.51 | 750 |
| 71 | CP502537 | 5.1*25*38 | 300 | 600 | 8.2 | 1200 |
| 72 | CP503742 | 5.2*37*42 | 800 | 1000 | 13.75 | 1900 |
| 73 | CP505050 | 5.2*50.5*51 | 1500 | 2000 | 23.96 | 3500 |
| 74 | CP505050-S | 5.1*50*50 | 1000 | 1500 | 24 | 3200 |
| 75 | CP505060 | 4.9*50*60.5 | 1500 | 2000 | 27.3 | 4000 |
| 76 | CP551725 | 5.6*17*25 | 150 | 200 | 3.2 | 400 |
| 77 | CP551850 | 5.6*18*48 | 300 | 500 | 7.35 | 1050 |
| 78 | CP553550 | 5.5*35*50 | 1000 | 1200 | 16.1 | 2400 |
| 79 | CP601733 | 5.8*18*35 | 200 | 400 | 5.6 | 780 |
| 80 | CP603446 | 5.8*34*47 | 800 | 1200 | 15 | 2300 |
| 81 | CP603448 | 6.1*34.5*49 | 1000 | 1400 | 17.4 | 2800 |
| 82 | CP603550 | 6.0*35*50 | 1000 | 1200 | 17.66 | 2700 |
| 83 | CP603742 | 6.0*37*42 | 1000 | 1200 | 15.4 | 2200 |
| 84 | CP605050 | 6.0*50.5*50.5 | 1500 | 2000 | 27.5 | 4000 |
| 85 | CP651848 | 6.4*18*48 | 300 | 600 | 8.3 | 1200 |
| 86 | CP652440 | 6.5*24.5*41.5 | 600 | 1000 | 11.2 | 1500 |
| 87 | CP653742 | 6.5*37*42 | 500 | 1000 | 16.73 | 2600 |
| 88 | CP681916 | 6.8*19*16 | 150 | 200 | 2.61 | 300 |
| 89 | CP702025 | 7.0*20*25 | 200 | 300 | 4.6 | 600 |
| 90 | CP702440 | 7.48*24.5*41 | 700 | 1000 | 12.6 | 1800 |
| 91 | CP702537 | 7.4*25*39.5 | 500 | 800 | 11.9 | 1600 |
| 92 | CP703047-Z | 7.0*30.0*48.0 | 800 | 1200 | 17.4 | 2300 |
| 93 | CP7037104 | 7.0*36*104 | 3000 | 4000 | 47.6 | 8000 |
| 94 | CP7039109 | 7.1*38.5*110.5 | 3000 | 4500 | 54.5 | 9000 |
| 95 | CP704216 | 6.8*41.5*17 | 200 | 300 | 6.1 | 720 |
| 96 | CP705050 | 7.1*50.5*50.5 | 1500 | 2000 | 32.8 | 5000 |
| 97 | CP752425 | 7.5*23*26 | 300 | 600 | 6.5 | 1000 |
| 98 | CP754548 | 7.3*45.5*49 | 1000 | 2250 | 27.7 | 4500 |
| 99 | CP7839109 | 7.7*36*109 | 3000 | 4500 | 55.5 | 10000 |
| 100 | CP7839109K | 7.6*37.5*112 | 2000 | 5000 | 65 | 9100 |
| 101 | CP802025 | 8.0*20*27 | 200 | 400 | 5.5 | 800 |
| 102 | CP802240 | 7.9*22*41 | 600 | 1000 | 10.2 | 1500 |
| 103 | CP8026110 | 7.8*25.5*109.5 | 2000 | 3000 | 38.8 | 6000 |
| 104 | CP8044116K | 7.9*44.5*116 | 2000 | 4000 | 74 | 12000 |
| 105 | CP804560 | 7.9*45.5*59.5 | 2000 | 3000 | 38.5 | 6400 |
| 106 | CP853078 | 8.4*30*78 | 2000 | 3000 | 33.5 | 5500 |
| 107 | CP902440 | 9.2*25*42.5 | 1000 | 1200 | 14.43 | 2250 |
| 108 | CP902525 | 8.9*24*26 | 300 | 600 | 7.7 | 1200 |
| 109 | CP9026110 | 9.0*25.5*110.5 | 2000 | 3000 | 45.8 | 7300 |
| 110 | CP9032100 | 9.0*32*100.5 | 3000 | 5000 | 49.8 | 8000 |
| 111 | CP903450 | 8.9*34*50 | 1500 | 2000 | 27 | 4000 |
| 112 | CP903450-Z | 9.1*34.5*50 | 1000 | 2000 | 26 | 4000 |
| 113 | CP905050 | 8.9*50*51.5 | 2000 | 3000 | 39.5 | 6500 |
| 114 | CP952240 | 9.0*22*41 | 600 | 1000 | 11.9 | 1800 |
| 115 | CP952434 | 9.6*24*34 | 700 | 1000 | 11.7 | 1800 |
| 116 | CP953083 | 9.3*30*83 | 2000 | 3000 | 40.15 | 6500 |
| 117 | CP9539109K | 9.4*37.5*112 | 3000 | 5000 | 80 | 11500 |
| 118 | CP955060 | 9.4*50.5*61 | 3000 | 4500 | 51.38 | 9000 |
Hot sale cylinder limno2 battery:
| Mode | Voltage (V) | Capacity (mAh) | Discharge Current(mA) | End Voltage(V) | Diameter(mm) | Height (mm) | Weight (g) | Testing Temp.(℃) |
| CR14250 | 3 | 650 | 10 | 2 | 14.5 | 25 | 10 | 23±3 |
| CR14505 | 3 | 1500 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3 | 1500 | 10 | 2 | 17 | 33.5 | 17 | 23±3 |
| CR17450 | 3 | 2000 | 10 | 2 | 17 | 50.5 | 23 | 23±3 |
| CR17505 | 3 | 2500 | 10 | 2 | 17 | 50.5 | 25 | 23±3 |
| CR17345(CR123A) | 3 | 1500 | 10 | 2 | 17 | 34.5 | 17 | 23±3 |
| CR11108(CR1/3N) | 3 | 160 | 2 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270(CR2) | 3 | 850 | 10 | 2 | 15.6 | 27 | 11 | 23±3 |
| CR-P2 | 6 | 1500 | 10 | 4 | 35x19.5x36 | 38 | 23±3 | |
| 2CR5 | 6 | 1500 | 10 | 4 | 34x45x17 | 38 | 23±3 | |
| CR-V3 | 3 | 3000 | 20 | 2 | 29x14.5x53 | 38 | 23±3 | |
